Description

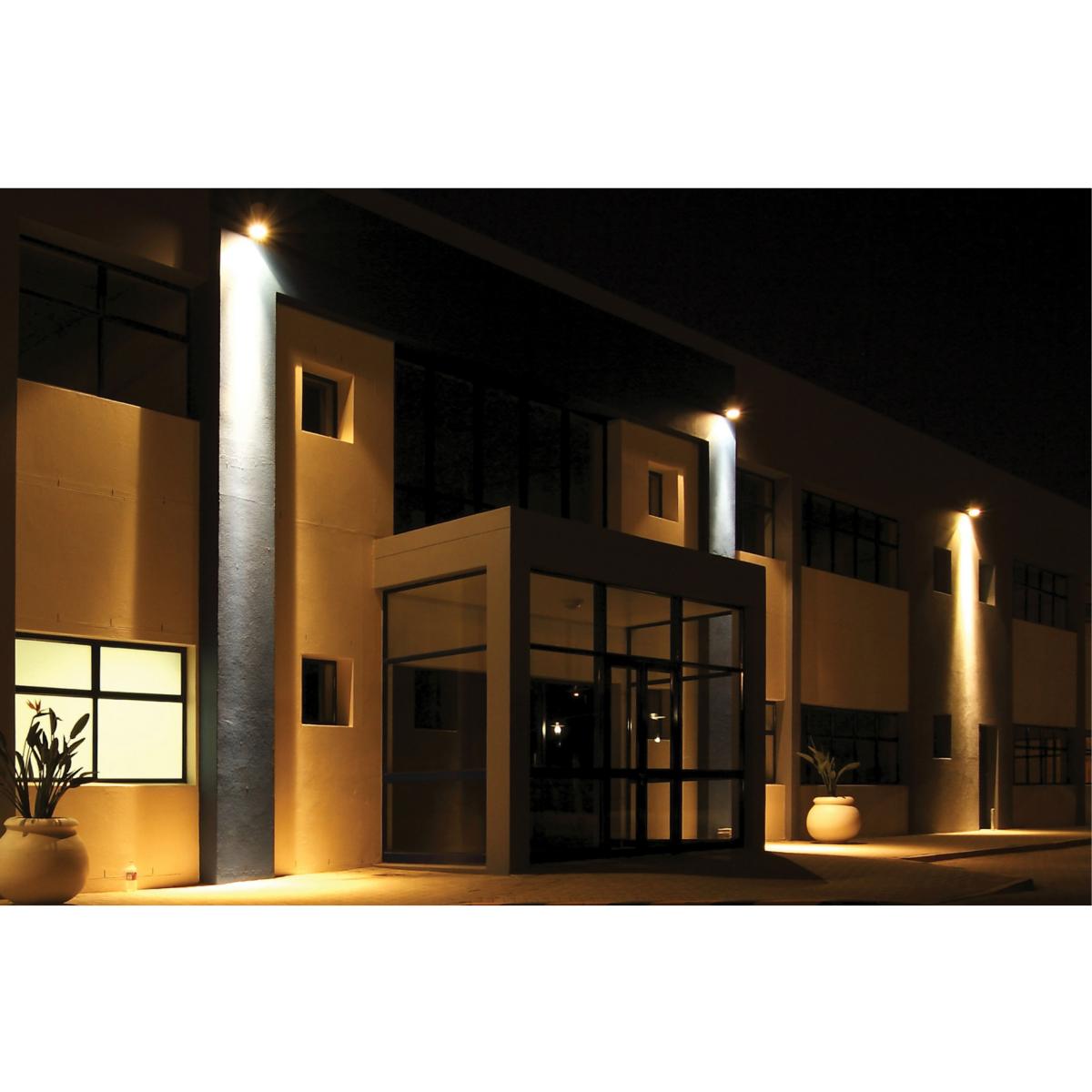

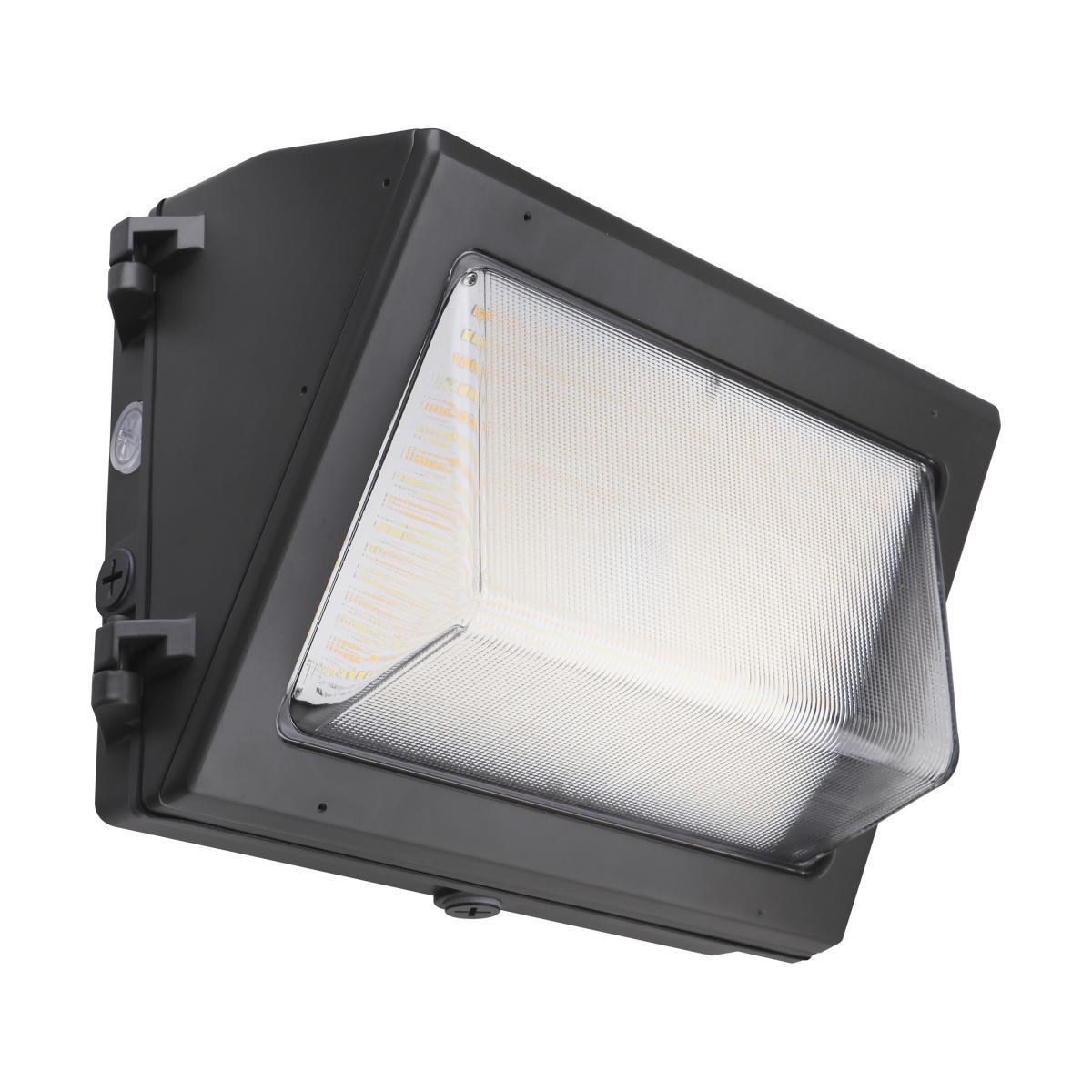

The LED Wall Pack offers adjustable wattage (80W/100W/120W) and CCT selection (3000K/4000K/5000K), providing a customizable lighting solution for commercial and industrial applications. With high lumen output (11,360 to 17,400 lumens) and 110° beam angle, this fixture ensures bright, uniform illumination for building exteriors, pathways, and security lighting.
Built for durability and efficiency, this DLC Premium-listed wall pack features an integrated bypassable photocell, 4kV surge protection, and IP65-rated die-cast aluminum housing. Designed for wet locations, it withstands extreme weather conditions, making it ideal for parking lots, perimeter lighting, and commercial facilities.
With 50,000-hour lifespan, 0-10V dimmable compatibility, and 120V-347V universal voltage support, this energy-efficient LED fixture reduces maintenance costs while ensuring long-term reliability.
Key Features:
- Adjustable Wattage & CCT: 80W/100W/120W and 3000K/4000K/5000K
- Powerful Brightness: Delivers 11,360 - 17,400 lumens
- IP65 Rated: Weatherproof and ideal for outdoor environments
- Bypassable Photocell: Enables dusk-to-dawn operation for automatic lighting control
- 0-10V Dimmable: Enhances energy savings and lighting customization
- Built-In Surge Protection: 4kV surge protection for fixture longevity
- DLC Premium Certified: Qualifies for energy rebates

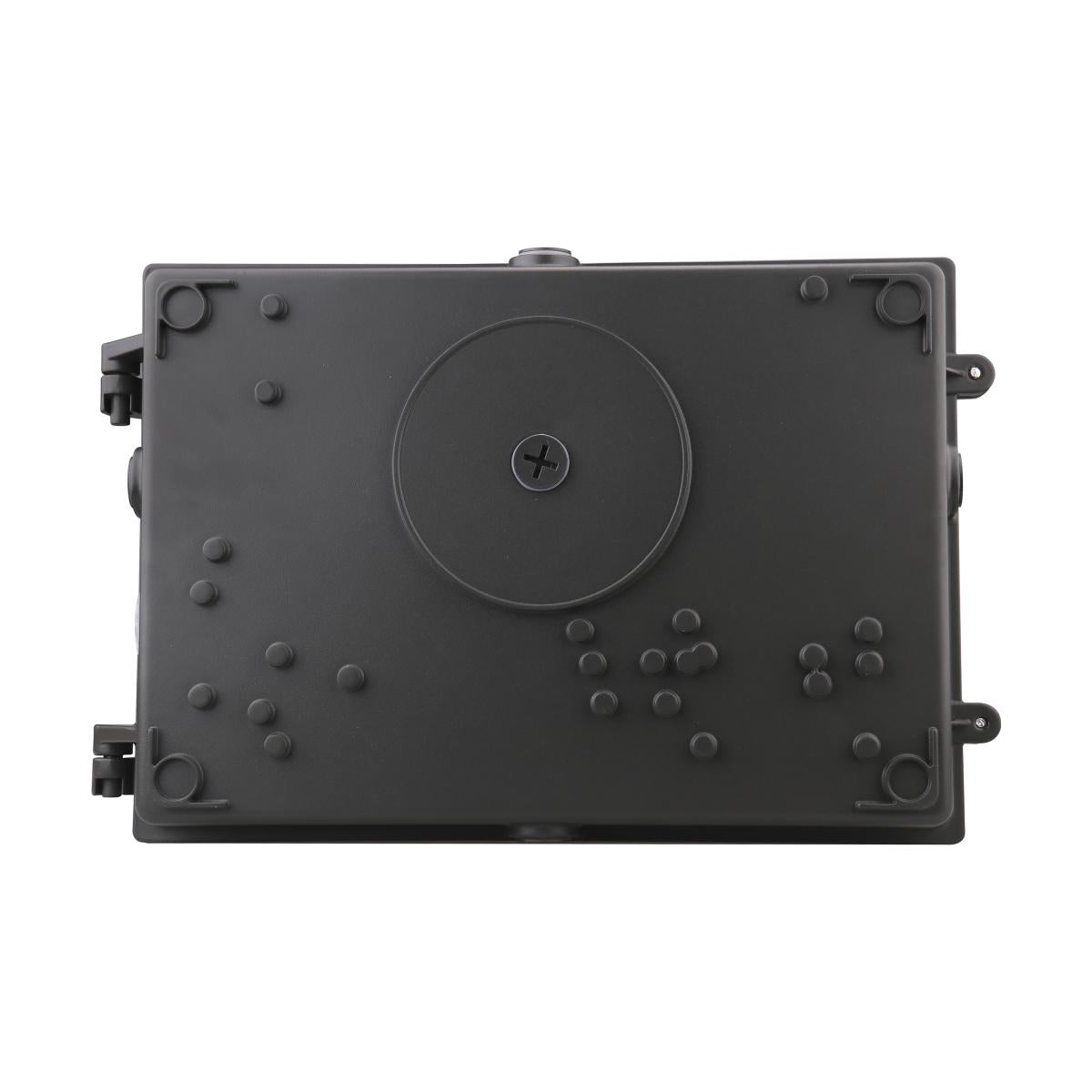

- Easy Installation: Wall-mounted with standard electrical connections
Specifications:
- Wattage: 80W/100W/120W
- Voltage: 120V-347V

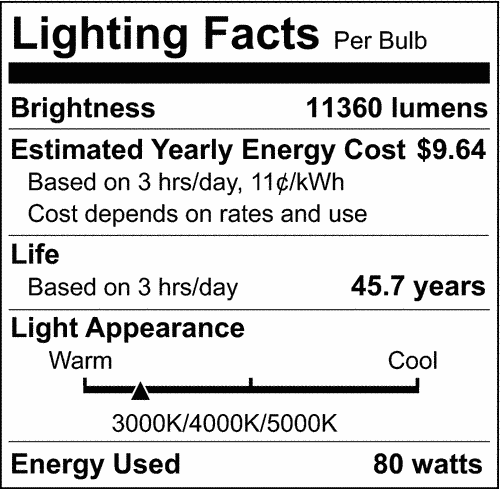

- Lumen Output: 11,360 - 17,400 lumens
- Color Temperature: 3000K / 4000K / 5000K
- Beam Angle: 110°
- IP Rating: IP65 (Weatherproof, Outdoor Rated)
- Material: Die-cast aluminum housing with glass lens
- Surge Protection: 4kV
- Power Factor: 0.9
- CRI: 80+
- Lifespan: 50,000 hours
- Installation: Wall-mounted
Applications:
- Commercial and industrial buildings
- Security lighting for parking lots and pathways
- Perimeter and exterior building illumination

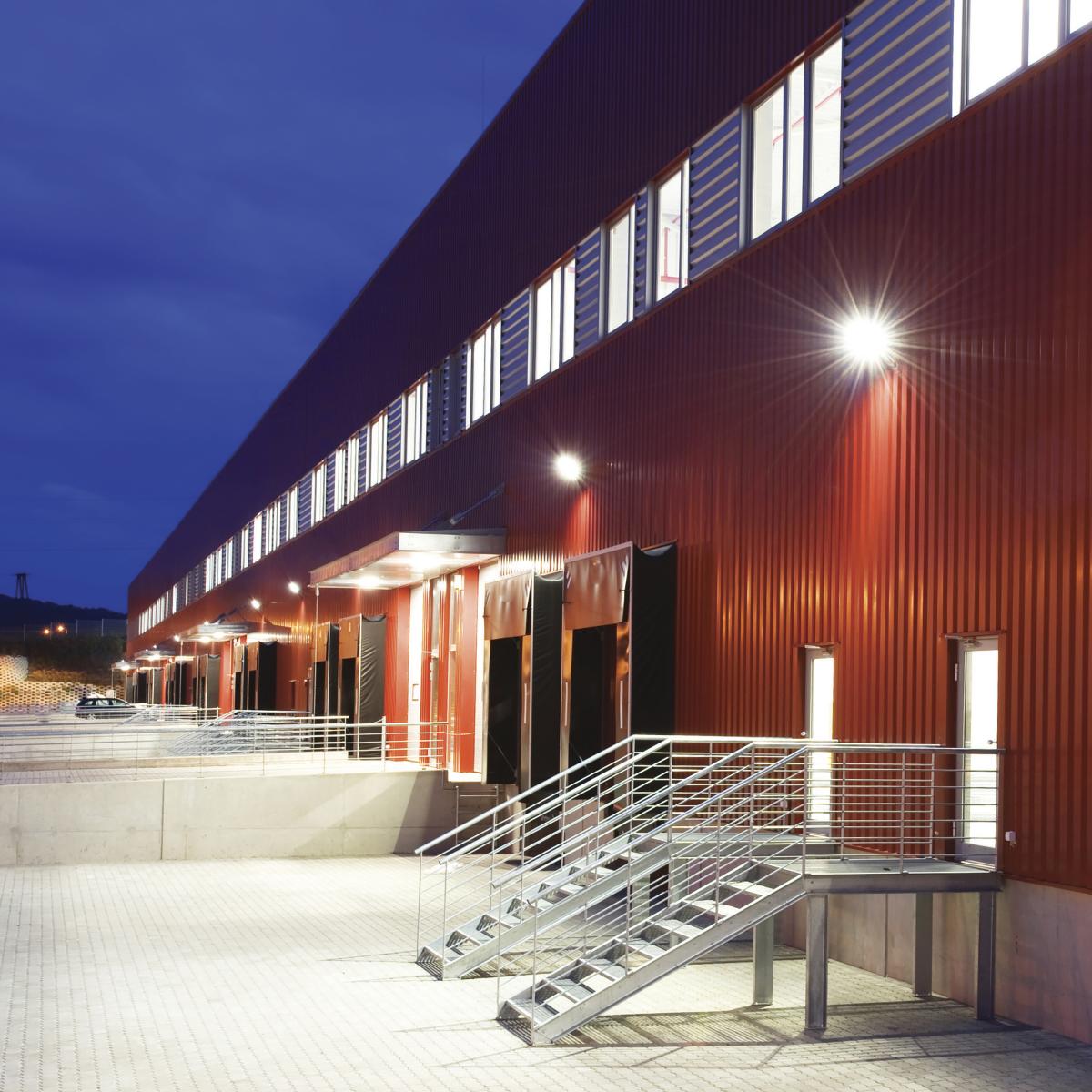

- Warehouses, loading docks, and storage facilities
- Schools, hospitals, and office buildings
