Description

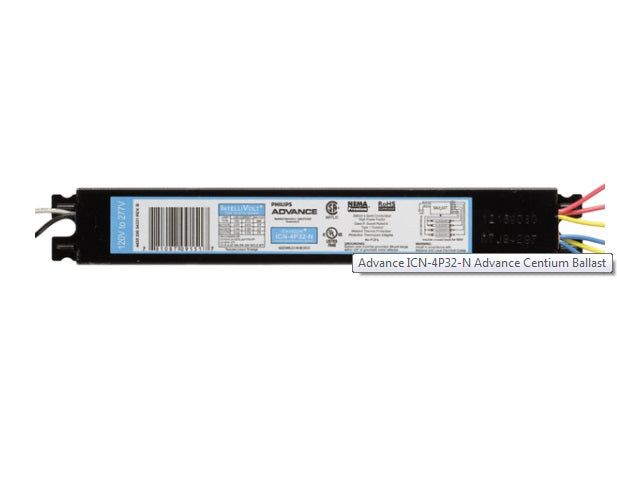

The Advance Centium ICN-4P32-N Fluorescent Ballast offers high-efficiency performance for T8 linear fluorescent lamps. Designed for instant start operation, this ballast ensures reliable performance while reducing energy consumption. Its universal voltage (120-277V) design makes it versatile for various commercial and industrial applications.
Featuring a parallel lamp connection, the ballast ensures that if one lamp fails, the others remain illuminated. It's engineered with high power factor, low harmonic distortion, and optimal thermal protection to enhance lamp life and ensure consistent operation.
Ideal for retrofits or new installations in offices, warehouses, schools, and commercial facilities, the ICN-4P32-N ballast is UL and cUL listed for safety and reliability.
Key Features:
✅ Universal Voltage (120-277V) – Flexibility for commercial installations.
✅ Instant Start Technology – Reduces energy costs while ensuring fast startup.
✅ Parallel Lamp Connection – Ensures continuous operation even if one lamp fails.
✅ Low Harmonic Distortion – THD under 10%, improving energy efficiency.
✅ High Power Factor – Greater than 0.99, minimizing energy losses.
✅ Thermal Protection – Designed for consistent performance up to 75°C.
✅ Versatile Lamp Compatibility – Operates F17T8, F25T8, F32T8, F40T8, and ES versions.
✅ cULus Listed – Meets safety standards for North American installations.
✅ 5-Year Limited Warranty – Confidence in long-term reliability.
⚙️ Technical Specifications:
| Feature | Details |
|---|---|
| Ballast Type | Electronic, Instant Start |
| Input Voltage | 120-277V |
| Starting Method | Instant Start |
| Lamp Connection | Parallel |
| Input Frequency | 50/60Hz |
| Max Case Temperature | 75°C |
| Power Factor | >0.99 |
| Total Harmonic Distortion (THD) | <10% |
| Ballast Factor | 0.89 to 1.04 (Varies by lamp type) |
| Lamp Compatibility | F17T8, F25T8, F32T8, F40T8, F32T8/ES (25W, 28W, 30W) |
| Safety Certifications | cULus Listed |
| Warranty | 5-Year Limited |
✅ Performance Summary by Lamp Type:
| Lamp Type | # of Lamps | Ballast Factor | Input Power (W) | Input Current (A) | Min Start Temp (°F/°C) | B.E.F. |
|---|---|---|---|---|---|---|
| F17T8 | 3 | 1.04 | 53 | 0.20 | 0/-18 | 1.96 |
| F17T8 | 4 | 0.93 | 64 | 0.23 | 0/-18 | 1.45 |
| F25T8 | 3 | 1.01 | 74 | 0.27 | 0/-18 | 1.36 |
| F25T8 | 4 | 0.91 | 89 | 0.32 | 0/-18 | 1.02 |
| F32T8 | 3 | 1.00 | 93 | 0.33 | 0/-18 | 1.08 |
| F32T8 | 4 | 0.89 | 111 | 0.41 | 0/-18 | 0.80 |
| F32T8/ES (25W) | 3 | 1.00 | 73 | 0.27 | 60/16 | 1.37 |
| F32T8/ES (28W) | 3 | 1.00 | 80 | 0.30 | 60/16 | 1.25 |
| F32T8/ES (30W) | 3 | 1.00 | 87 | 0.32 | 60/16 | 1.15 |
| F40T8 | 3 | 0.97 | 112 | 0.40 | 32/00 | 0.87 |
📐 Installation & Compatibility Notes:
- Parallel Lamp Connection: Ensures other lamps continue to operate if one fails.
- Universal Voltage (120-277V): Ideal for a variety of commercial and industrial settings.
- Certified for North American Use: cULus listed for added safety assurance.
- Min. Start Temperature: Operates in cold conditions down to -18°C (0°F).
Ideal For Use In:
- Commercial Offices
- Retail Spaces
- Industrial Facilities
- Warehouses
- Educational Institutions
- Retrofit and New Installations
⚠️ Important Installation & Return Notice:
- Verify Compatibility: Ensure the ballast is suitable for your lamp type and voltage setup.
- Returns Policy: Installed ballasts are non-returnable as installation may affect product integrity. Please verify specifications before installation.
