Description

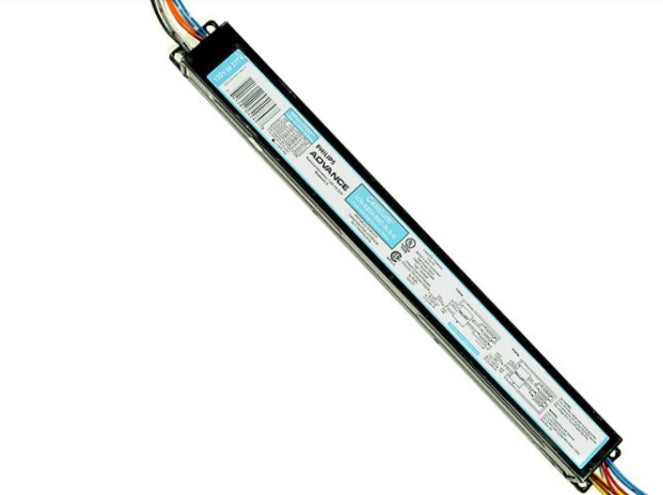

The Centium T5 ICN4S5490C2LSG Fluorescent Ballast delivers high-efficiency lighting performance for a wide range of T5 high-output (HO) fluorescent lamps. Engineered for programmed start operation, this ballast enhances lamp life and ensures reliable performance in commercial, industrial, and residential applications.
Designed with universal voltage (120-277V) and a series/parallel lamp connection, this ballast offers flexible installation options. It operates a variety of lamp types, including T5, T8, and 2G11 compact fluorescent lamps, while providing excellent power factor and low total harmonic distortion (THD).
Ideal for use in offices, retail spaces, industrial facilities, and commercial settings, this ballast is cULus listed and features built-in thermal protection for long-lasting durability.
Key Features:
✅ Universal Voltage (120-277V) – Ideal for multiple installation environments.
✅ Programmed Start Technology – Maximizes lamp life with soft-start operation.
✅ Series/Parallel Lamp Connection – Ensures flexibility in lamp configurations.
✅ High Power Factor – Greater than 0.98, ensuring minimal energy loss.
✅ Low Harmonic Distortion (THD) – Maintains THD below 10% for efficiency.
✅ Thermal Protection – Operates safely in temperatures up to 90°C.
✅ Wide Lamp Compatibility – Supports T5, T8, 2G11 lamps, and energy-saving options.
✅ cULus Listed – Meets North American safety standards.
✅ 5-Year Limited Warranty – Long-term protection for peace of mind.
⚙️ Technical Specifications:
| Feature | Details |
|---|---|
| Ballast Type | Electronic, Programmed Start |
| Input Voltage | 120-277V |
| Starting Method | Programmed Start |
| Lamp Connection | Series/Parallel |
| Input Frequency | 50/60Hz |
| Max Case Temperature | 90°C |
| Power Factor | >0.98 |
| Total Harmonic Distortion (THD) | <10% |
| Ballast Factor | 0.89 to 1.20 (varies by lamp type) |
| Lamp Compatibility | T5, T8, 2G11 Compact Fluorescent Lamps |
| Safety Certifications | cULus Listed |
| Warranty | 5-Year Limited |
✅ Performance Summary by Lamp Type:
| Lamp Type | # of Lamps | Ballast Factor | Input Power (W) | Input Current (A) | Min Start Temp (°F/°C) | B.E.F. |
|---|---|---|---|---|---|---|
| F54T5/HO | 1 | 0.99 | 62 | 0.52 | -20/-29 | 1.60 |
| F54T5/HO | 4 | 1.00 | 240 | 2.00 | -20/-29 | 0.42 |
| F54T5/HO/ES (44W) | 4 | 1.00 | 200 | 1.66 | 5/-15 | 0.50 |
| F58T8 | 4 | 1.00 | 225 | 1.88 | -20/-29 | 0.44 |
| FT36W/2G11 | 4 | 1.20 | 176 | 1.47 | -20/-29 | 0.68 |
| FT50W/2G11 | 4 | 1.10 | 235 | 1.96 | -20/-29 | 0.47 |
| FT55W/2G11 | 4 | 0.90 | 222 | 1.86 | -20/-29 | 0.41 |
📐 Installation & Compatibility Notes:
- Series/Parallel Lamp Connection: Ensures consistent lamp performance.
- Universal Voltage (120-277V): Suitable for global commercial environments.
- Thermal Protection: Safe to operate up to 90°C.
- Versatile Compatibility: Works with multiple lamp types and wattages.
- Start Temperature: Functions in temperatures as low as -29°C (-20°F).
Ideal For Use In:
- Commercial Office Spaces
- Industrial Warehouses
- Educational Institutions
- Healthcare Facilities
- Retail Stores
- Hospitality Venues
- Residential Applications
⚠️ Important Installation & Return Notice:
- Verify Compatibility: Ensure compatibility with your specific lamp type and voltage.
- Non-Returnable if Installed: Ballasts that have been installed cannot be returned. Installation may affect product integrity, so please confirm specifications before installation.
