Description

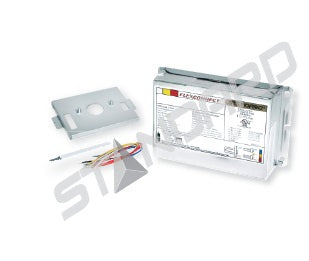

Optimize your lighting performance with the Program Start CFL Electronic Ballast, specifically designed for 347V commercial and industrial lighting systems. This ballast ensures reliable, smooth lamp ignition and is compatible with a wide variety of compact fluorescent lamps, making it an excellent solution for both retrofit and new installations.
Built with Class P thermal protection and series lamp connection, this ballast guarantees long-lasting operation in demanding environments. With a high power factor, low THD, and program start technology, it extends lamp life while enhancing energy efficiency. Backed by a 5-year warranty, it's ideal for environments where durability and consistency matter.
Key Features:
✅ Multi-Lamp Compatibility – Supports PL42, PL32, PL26, PL40, 2D lamps, and more.
✅ Program Start Technology – Provides smooth and controlled lamp ignition, reducing lamp wear.
✅ Wide Voltage Range – Designed for 347V commercial installations.
✅ High Performance – Features low THD, high ballast factors, and Class P thermal protection.
✅ Thermally Protected – Operates reliably in case temperatures up to 90°C.
✅ Certified for Safety – cULus listed and RoHS compliant.
✅ Extended Warranty – Backed by a 5-year limited warranty for long-term peace of mind.
✅ Wide Operating Temperature – Operates efficiently down to -30°C (-22°F).
⚙️ Technical Specifications:
| Feature | Details |
|---|---|
| Ballast Type | Electronic, Program Start |
| Starting Method | Program Start |
| Lamp Connection | Series |
| Input Voltage | 347V |
| Input Frequency | 50/60 Hz |
| Max Case Temperature | 90°C |
| Thermal Protection | Class P |
| Power Factor | >0.97 |
| Total Harmonic Distortion (THD) | <20% |
| Sound Rating | A |
| Certifications | cULus, RoHS Compliant |
| Warranty | 5 Years |
✅ Compatible Lamp Types & Performance
| Lamp Type | No. of Lamps | Wattage | Min Start Temp (°F/°C) | Input Current (A) | Input Power (W) | Ballast Factor | THD % | Power Factor |
|---|---|---|---|---|---|---|---|---|
| PL42/TTT | 2 | 42W | -22 / -30 | 0.27 | 94W | 0.91 | 10 | 0.99 |
| PL26/TTT | 2 | 26W | -22 / -30 | 0.18 | 60W | 1.00 | 20 | 0.97 |
| PL40/TTL | 2 | 40W | -22 / -30 | 0.26 | 88W | 0.91 | 15 | 0.98 |
| PL57/TTT | 1 | 57W | -22 / -30 | 0.18 | 60W | 0.95 | 20 | 0.97 |
| PL42/TTT | 1 | 42W | -22 / -30 | 0.14 | 48W | 0.99 | 30 | 0.97 |
| PL26/TTT | 1 | 26W | -22 / -30 | 0.09 | 31W | 1.00 | 35 | 0.95 |
| PL36/TTL | 1 | 36W | -22 / -30 | 0.10 | 35W | 0.89 | 35 | 0.95 |
| 2D (38W) | 1 | 38W | -22 / -30 | 0.15 | 40W | 0.89 | 30 | 0.96 |
📌 Ideal for:
- Commercial Lighting – Office buildings, shopping centers, and public facilities.
- Industrial Installations – Warehouses, manufacturing plants, and factories.
- Retrofit Projects – Modernize older systems with efficient and reliable technology.
- Cold Environments – Operates reliably down to -30°C (-22°F).
⚠️ Important Installation & Return Notice:
- Check Compatibility: Ensure the ballast is compatible with your fixture and lamp type.
- Returns Policy: Installed ballasts are non-returnable, as installation can impact product integrity. Please verify the compatibility before installation.
