Description

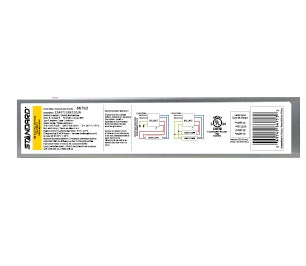

The Standard E240T12RS120/N Electronic Fluorescent Ballast is engineered for reliable performance with T12 lamps. Designed for rapid start (RS) operation, this ballast supports 1 to 2 lamps with a normal ballast factor (0.86 - 1.00) and operates at 120V.
Built for efficiency and longevity, it includes thermal protection and is Class P rated for safety. Ideal for commercial, industrial, and residential lighting applications, this ballast is also ICES-005 compliant for Canadian standards and CAN/CSA C654-14 efficacy verified.
🔑 Key Features:
✅ Rapid Start (RS) Technology – Ideal for environments requiring low-flicker startup.
✅ 120V Operation – Standard voltage for a wide range of applications.
✅ Supports 1-2 T12 Lamps – Flexible for single or dual lamp configurations.
✅ Normal Ballast Factor (0.86 - 1.00) – Balanced performance for general lighting.
✅ Thermal Protection – Operates safely with a maximum case temperature of 75°C.
✅ Auto-Restart Feature – Automatically restrikes after power interruptions.
✅ Sound Rating A – Quiet operation in commercial settings.
✅ ICES-005 Compliant – Meets Canadian regulations for electromagnetic emissions.
✅ 5-Year Limited Warranty – Ensures long-term reliability.
⚙️ Technical Specifications:
| Feature | Details |
|---|---|
| Ballast Type | Electronic |
| Starting Method | Rapid Start (RS) |
| Lamp Connection | Series |
| Input Voltage | 120V |
| Input Frequency | 50/60 Hz |
| Ballast Factor | 0.86 - 1.00 |
| Max Case Temperature | 75°C |
| Thermal Protection | Class P |
| Open Circuit Voltage (OCV) | 450V |
| Sound Rating | A |
| Auto-Restart | Yes |
| Safety Listing | ICES-005 Compliant, cULus Listed |
| Warranty | 5-Year Limited |
✅ Performance Summary by Lamp Type:
| Lamp Type | # of Lamps | Ballast Factor | Input Power (W) | Input Current (A) | Min Start Temp (°F/°C) | B.E.F. |
|---|---|---|---|---|---|---|
| F40W T12 | 2 | 0.86 | 67 | 0.66 | 0/-18 | 1.28 |
| F40W T12 | 1 | 0.88 | 40 | 0.34 | 0/-18 | 2.20 |
| F34W T12 | 2 | 0.86 | 61 | 0.52 | 50/10 | 1.41 |
| F34W T12 | 1 | 0.88 | 37 | 0.31 | 50/10 | 2.38 |
| F30W T12 | 2 | 0.85 | 59 | 0.50 | 0/-18 | 1.44 |
| F30W T12 | 1 | 0.95 | 35 | 0.30 | 0/-18 | 2.71 |
| F40W T12 ES | 2 | 1.40 | 78 | 0.66 | 50/10 | 1.79 |
📐 Installation & Compatibility Notes:
- Lamp Compatibility: Works with 25W-40W T12 fluorescent lamps.
- Voltage Requirements: Operates at 120V.
- Temperature Range: Capable of starting at temperatures as low as -18°C (0°F).
- Thermal Protection: Ensures safety with a max case temperature of 75°C.
- Auto-Restart: Automatically restrikes after power loss.
- Sound Rating A: Ensures quiet operation in sensitive environments.
Ideal For Use In:
- Commercial Office Spaces
- Retail Environments
- Industrial Facilities
- Residential Lighting Applications
- Institutional Spaces
- Warehouses
⚠️ Important Installation & Return Notice:
- Verify Compatibility: Ensure the ballast is compatible with your specific lamp type before installation.
- Non-Returnable if Installed: Ballasts that have been installed cannot be returned. Installation may affect product integrity, so please confirm specifications before installation.
