Description

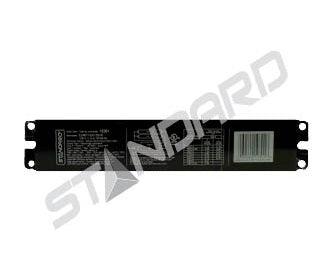

The Standard E296T12IS120/N Electronic Fluorescent Ballast is designed for efficient and reliable operation with T12 lamps. Utilizing instant start (IS) technology, it supports 1 to 2 lamps and operates on a 120V power supply.
This ballast is built with Class P thermal protection, is auto-restriking, and operates at a normal ballast factor for consistent illumination. Ideal for a variety of indoor and outdoor lighting applications, it is also ICES-005 compliant for Canadian regulations.
Key Features:
✅ Instant Start (IS) Technology – Provides fast and efficient lamp ignition.
✅ 120V Operation – Versatile and compatible with standard voltage setups.
✅ Supports 1-2 T12 Lamps – Flexible installation for multiple lamp configurations.
✅ Normal Ballast Factor (0.86 - 1.02) – Ensures consistent and reliable performance.
✅ Auto-Restart Feature – Automatically restrikes after power interruptions.
✅ Thermal Protection – Class P certified for added safety.
✅ Sound Rating A – Operates quietly, ideal for commercial spaces.
✅ ICES-005 Compliant – Meets Canadian safety and environmental standards.
✅ 5-Year Limited Warranty – Backed for long-term performance assurance.
⚙️ Technical Specifications:
| Feature | Details |
|---|---|
| Ballast Type | Electronic |
| Starting Method | Instant Start (IS) |
| Lamp Connection | Parallel |
| Input Voltage | 120V |
| Input Frequency | 50/60 Hz |
| Ballast Factor | 0.86 - 1.02 |
| Max Case Temperature | 75°C |
| Thermal Protection | Class P |
| Open Circuit Voltage (OCV) | 600V |
| Sound Rating | A |
| Auto-Restart | Yes |
| Safety Listing | ICES-005 Compliant, cULus Listed |
| Warranty | 5-Year Limited |
✅ Performance Summary by Lamp Type:
| Lamp Type | # of Lamps | Ballast Factor | Input Power (W) | Input Current (A) | Min Start Temp (°F/°C) | B.E.F. |
|---|---|---|---|---|---|---|
| F96T12 (75W) | 2 | 0.86 | 133 | 1.12 | 0/-18 | 0.65 |
| F96T12/ES (60W) | 2 | 0.88 | 113 | 0.95 | 0/-18 | 0.78 |
| F84T12 (70W) | 2 | 0.88 | 122 | 1.04 | 0/-18 | 0.72 |
| F72T12 (57W) | 2 | 0.90 | 107 | 0.92 | 0/-18 | 0.84 |
| F64T12 (52W) | 2 | 0.90 | 93 | 0.78 | 0/-18 | 0.97 |
| F60T12 (50W) | 2 | 0.90 | 85 | 0.72 | 0/-18 | 1.06 |
| F48T12 (40W) | 2 | 0.92 | 76 | 0.67 | 0/-18 | 1.21 |
| F48T12/ES (30W) | 2 | 0.92 | 64 | 0.56 | 0/-18 | 1.44 |
📐 Installation & Compatibility Notes:
- Lamp Compatibility: Ideal for 30W-75W T12 fluorescent lamps.
- Voltage Requirements: Operates on a 120V electrical system.
- Temperature Range: Starts at temperatures as low as -18°C (0°F).
- Thermal Protection: Ensures safe operation with a max case temperature of 75°C.
- Auto-Restart: Automatically restrikes after power loss.
- Sound Rating A: Ensures quiet performance in commercial spaces.
Ideal For Use In:
- Commercial Offices
- Industrial Spaces
- Warehouses
- Retail Stores
- Institutional Facilities
⚠️ Important Installation & Return Notice:
- Verify Compatibility: Confirm compatibility with your specific lamp type before installation.
- Non-Returnable if Installed: Ballasts that have been installed cannot be returned. Installation may affect product integrity, so please confirm specifications before proceeding.
